| № SAP |
30005149 |
| Партномер |
SRWO8U22 |
Описание
SMARTRACK™ Series
SRWO8U22

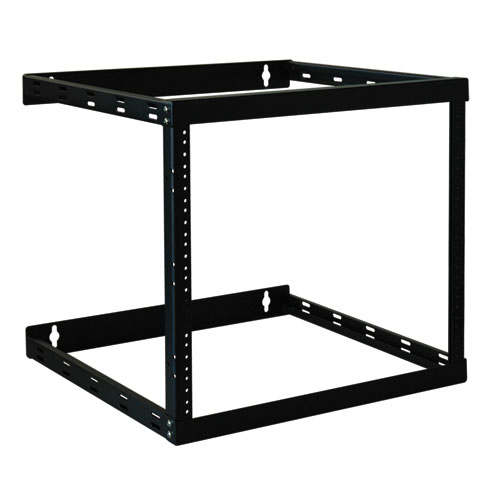

8U, 12U or 22U Wall-Mount Open Frame Rack
Assemble as 8U, 12U or 22U (all required parts included)Open frame with 2 post mounting, 19" wide, 18" DepthThreaded (12-24) mounting holesHeavy duty steel frameEasy assembly
Overview
Designed with provisions to integrate wall mounting, easy equipment access and cable management, SmartRack wall-mounted open frame cabinets are perfect for network equipment in IT environments with limited floor space. The 19" wide open frame rack is a heavy duty open frame rack designed for secure, high density servers and networking applications in IT environments. Rack can assemble as an 8U, 12U or 22U all from same sku and all additional parts needed are included.
Key Features
Assembles as 8U, 12U or 22U all from single sku (all extra parts are included)2 post wall mounting...EIA 19" widthThreaded (12-24) mounting holesHeavy duty steel constructionDurable black textured powder coat finishEasy Assembly
Package Includes
(1) 3mm L-Shaped Hex Key(2) Top/Bottom Panel Frames(2) Short Vertical Mounting Rails(2) Long Vertical Mounting Rails(9) M5 Button Head Cap Screws(24) #12-24 Equipment Mounting ScrewsExpansion Kit (packaged separately)(1) 3mm L-shaped Hex Key(2) Mounting Rail Tie Plates(9) M5 Button Head Cap Screws(8) Zip Ties
Specifications
PHYSICALInstalled whole system maximum rack depth (inches)18Installed whole system maximum rack depth (cm)45.72Rack Height8U, 12U or 22UShipping Dimensions (HWD/in)3.03 x 20.28 x 18.70Shipping Dimensions (HWD/cm)7.69 x 51.51 x 47.49Shipping weight (lbs)16Shipping weight (kg)7.25Unit Dimensions (in.)EXTERNAL DIMENSIONS: 0 x 20.11 x 18.24 (HWD)Unit weight (lbs)13.77Unit weight (kg)6.24Unit Dimensions (cm)EXTERNAL DIMENSIONS: 0 x 51 x 46.32 (HWD)ColorBlackStyleWall MountedWeight Capacity - Stationary (lbs)150Weight Capacity - Stationary (kg)68.0CERTIFICATIONSNOM (Mexico)Tested to NOM (Mexico)ApprovalsEIA-310-D, IEC 60297-3-100, DIN 41494, RoHSWARRANTYProduct Warranty Period (Worldwide)5-year limited warranty
