| № SAP |
30005151 |
| Партномер |
SRWO12US |
Описание
SMARTRACK™ Series
SRWO12US

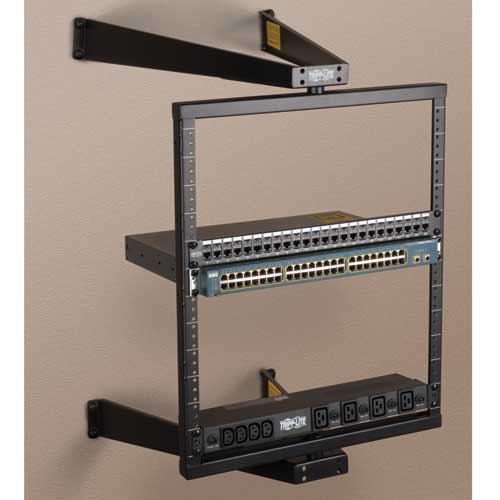

12U Wall-Mount Pivoting Open Frame Rack
12U wall-mount pivoting open frameHeavy duty steel frameEasy assembly
Overview
Designed with provisions to integrate wall mounting, easy equipment access and cable management, SmartRack wall-mounted open frame cabinets are perfect for network equipment in IT environments with limited floor space. The open frame rack is a heavy duty open frame rack designed for secure, high density servers and networking applications in IT environments. A sturdy hinge between the frame and the wall-mount bracket allows the frame to swing away from the wall for easy access to equipment and cabling. Pivoting frame allows for easy access from all locations.
Key Features
12U wall-mount pivoting open frameWall brackets for easy wall-mountingHinged frame swings away from wall bracket for easy equipment and cable accessHeavy duty steel constructionDurable black textured powder coat finishEasy assembly
Specifications
PHYSICALInstalled whole system maximum rack depth (inches)18Installed whole system maximum rack depth (cm)45.72Rack Height12UShipping Dimensions (HWD/in)3.35 x 24.21 x 20.08Shipping Dimensions (HWD/cm)8.5 x 61.49 x 51Shipping weight (lbs)17Shipping weight (kg)7.7Unit Dimensions (in.)EXTERNAL DIMENSIONS: 30.45 x 19.76 x 20.35 (HWD)Unit weight (lbs)15Unit weight (kg)6.8Unit Dimensions (cm)EXTERNAL DIMENSIONS: 77.34 x 50.19 x 61.69 (HWD)ColorBlackStyleWall MountedWeight Capacity - Stationary (lbs)150CERTIFICATIONSNOM (Mexico)Tested to NOM (Mexico)ApprovalsEIA-310-D, IEC 60297-3-100, DIN 41494, RoHSWARRANTYProduct Warranty Period (Worldwide)5-year limited warranty
