| № SAP |
30005159 |
| Партномер |
SRW12USG |
Описание
SMARTRACK™ Series
SRW12USG

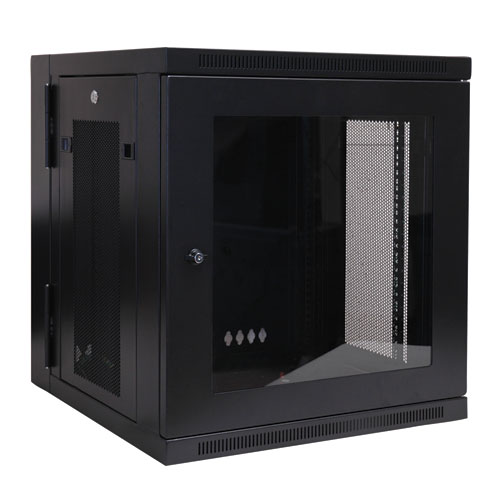

SmartRack 12U Wall-Mount Rack Enclosure Cabinet with Plexiglas® Front Door Insert
12U with adjustable front and rear vertical rackmount railsHinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)Locking, reversible Plexiglas® front door (2.7mm thick) and locking, removable side panelsFully assembled for quick installationMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Overview
The SRW12USG 12U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door, with Plexiglas® insert, and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.
Key Features
12U wall-mounted enclosureAdjustable mounting depths from 3" to 20.5" inchesPlexiglas® front door (2.7mm thich) with added ventilation holes retains proper airflow.Hinged cabinet swings away from wall bracket for easy equipment and cable accessLocking, reversible front doorLocking, removable side panelsTop and bottom panel cable access openingsFully assembled for quick installationMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Package Includes
SRW12USG Wallmount Rack Enclosure(20) M6 screws(20) M6 cage nuts(20) M6 washers(2) KeysOwner's Manual
Specifications
PHYSICALInstalled whole system maximum rack depth (inches)20.5Installed whole system maximum rack depth (cm)52.07Installed whole system minimum rack depth (inches)3Installed whole system minimum rack depth (cm)7.62Rack Height12UShipping Dimensions (HWD/in)27.95 x 26.38 x 24.41Shipping Dimensions (HWD/cm)71 x 67 x 62Shipping weight (lbs)70Shipping weight (kg)31.5Unit Dimensions (in.)EXTERNAL DIMENSIONS: 25 x 23.63 x 21.6 (HWD)Unit weight (lbs)60Unit weight (kg)27.21Unit Dimensions (cm)EXTERNAL DIMENSIONS: 63.5 x 60 x 54.9 (HWD)ColorBlackStyleWall MountedWeight Capacity - Stationary (lbs)200Weight Capacity - Stationary (kg)90.7SPECIAL FEATURESGrounding lugFront and Back door framesCERTIFICATIONSNOM (Mexico)Tested to NOM (Mexico)ApprovalsEIA-310-D, IEC 60297-3-100, DIN 41494, IP20 Protection, RoHSWARRANTYProduct Warranty Period (Worldwide)5-year limited warranty
