| № SAP |
30005161 |
| Партномер |
SRW12US |
Описание
SMARTRACK™ Series
SRW12US

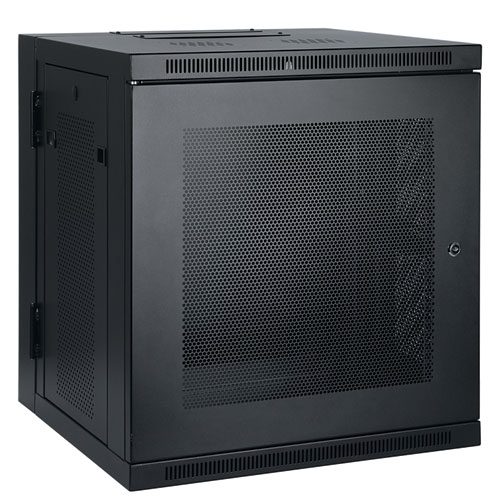

SmartRack 12U Wall-Mount Rack Enclosure Cabinet
12U with adjustable front and rear vertical rackmount railsHinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)Locking, reversible front door and locking, removable side panelsFully assembled for quick installationMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Overview
Tripp Lite’s SRW12US Wall Mount Rack Enclosure Cabinet is the ideal storage solution for standard rackmount equipment in applications with limited floor space. Constructed with a hinged wall mounting bracket and a sturdy steel frame, it can accommodate up to 200 lbs. of equipment in 12U of rack space. Four adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment. To allow easy access to rackmounted equipment, the enclosure cabinet is hinged to swing away from the wall mounting bracket. The SRW12US also features perforated lockable side panels and front door, assuring generous airflow to keep equipment operating safely. The front door is reversible and the side panels are removable for easy access to equipment. The top and bottom panels of the enclosure include convenient cable routing ports.
Key Features
12U wall-mounted enclosureAdjustable mounting depths from 3" to 20.5" inchesVentilated front door and side panels for increased airflowHinged cabinet swings away from wall bracket for easy equipment and cable accessLocking, reversible front doorLocking, removable side panelsTop and bottom panel cable access openingsFully assembled for quick installationMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Package Includes
SRW12US Wallmount Rack Enclosure(20) M6 screws(20) M6 cage nuts(20) M6 washers(2) KeysOwner's Manual
Specifications
PHYSICALInstalled whole system maximum rack depth (inches)20.5Installed whole system maximum rack depth (cm)52.07Installed whole system minimum rack depth (inches)3Installed whole system minimum rack depth (cm)7.62Rack Height12UShipping Dimensions (HWD/in)27.95 x 26.38 x 24.41Shipping Dimensions (HWD/cm)70.93 x 67 x 62Shipping weight (lbs)64Shipping weight (kg)28.8Unit Dimensions (in.)EXTERNAL DIMENSIONS: 25 x 23.63 x 21.6 (HWD)Unit weight (lbs)60Unit weight (kg)27.21Unit Dimensions (cm)EXTERNAL DIMENSIONS: 63.5 x 60 x 54.9 (HWD)ColorBlackStyleWall MountedWeight Capacity - Stationary (lbs)200Weight Capacity - Stationary (kg)90.7Cable Access Hole Measurement (inches)9.812 x 2.35 (l x w)SPECIAL FEATURESGrounding lugFront and Back door framesCERTIFICATIONSNOM (Mexico)Tested to NOM (Mexico)ApprovalsEIA-310-E, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHSWARRANTYProduct Warranty Period (Worldwide)5-year limited warranty
