| № SAP |
30005163 |
| Партномер |
SRW10US |
Описание
SMARTRACK™ Series
SRW10US

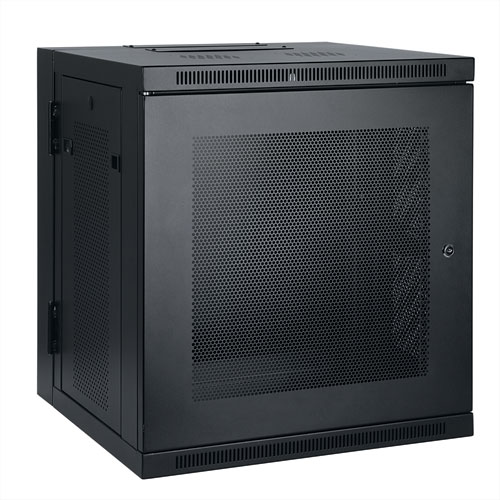

SmartRack 10U Wall-Mount Rack Enclosure Cabinet
10U with adjustable front and rear vertical rackmount railsHinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)Locking, reversible front door and locking, removable side panelsFully assembled for quick installationMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Overview
The SRW10US 10U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 10U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.
Key Features
10U wall-mounted enclosureAdjustable mounting depths from 3" to 20.5" inchesVentilated front door and side panels for increased airflowHinged cabinet swings away from wall bracket for easy equipment and cable accessLocking, reversible front doorLocking, removable side panelsTop and bottom panel cable access openingsFully assembled for quick installationMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Package Includes
SRW10US Wallmount Rack Enclosure(24) M6 screws(24) M6 cagenuts(24) M6 washers(2) KeysOwner's Manual
Specifications
PHYSICALInstalled whole system maximum rack depth (inches)20.5Installed whole system maximum rack depth (cm)52.07Installed whole system minimum rack depth (inches)3Installed whole system minimum rack depth (cm)7.62Rack Height10UShipping Dimensions (HWD/in)24.41 x 26.38 x 24.41Shipping Dimensions (HWD/cm)62 x 67 x 62Shipping weight (lbs)59Shipping weight (kg)26.76Unit Dimensions (in.)EXTERNAL DIMENSIONS: 21.57 x 23.62 x 21.6 (HWD)Unit weight (lbs)55Unit weight (kg)24.94Unit Dimensions (cm)EXTERNAL DIMENSIONS: 54.78 x 60 x 54.9 (HWD)ColorBlackStyleWall MountedWeight Capacity - Stationary (lbs)200Weight Capacity - Stationary (kg)90.7Cable Access Hole Measurement (inches)9.812 x 2.35 (l x w)SPECIAL FEATURESGrounding lugFront and Back door framesCERTIFICATIONSNOM (Mexico)Tested to NOM (Mexico)ApprovalsEIA-310-E, IEC 60297-3-100, RoHS, DIN 41494, IP20 Protection RatingWARRANTYProduct Warranty Period (Worldwide)5-year limited warranty
