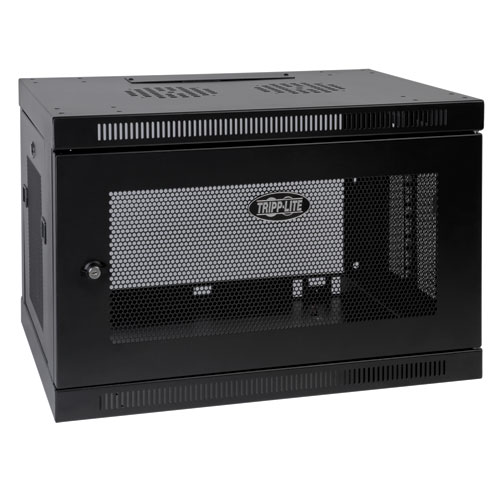

Tripp Lite SRW9U 9U Wall-Mount Enclosure (black). Fixed wall bracket.

SMARTRACK™ Series

SRW9U

SmartRack 9U Wall-Mount Rack Enclosure Cabinet
Designed for IT and education environments where equipment needs to be secure and out of the way9U with adjustable front vertical rackmount railsLocking, reversible front door and locking, removable side panelsFully assembled for quick installationMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Overview

The SRW9U 9U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 9U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall.

Key Features

 9U wall-mounted enclosureAdjustable mounting depths up to 17" by 2 front vertical rackmount railsVentilated front door and side panels for increased airflowLocking, reversible front doorLocking, removable side panelsFully assembled for quick installationMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Typical Applications

IT network environments with limited floor space and classrooms where equipment needs to be secure and out of the way of students.
Package Includes

 SRW9U Wallmount Rack Enclosure(18) M6 screws(18) M6 cage nuts(18) M6 washers(2) KeysOwner's Manual
Specifications
PHYSICALInstalled whole system maximum rack depth (inches)16.5Installed whole system maximum rack depth (cm)41.9Installed whole system minimum rack depth (inches)3Rack Height9UShipping Dimensions (HWD/in)22.6 x 26.4 x 20.5Shipping Dimensions (HWD/cm)57.40 x 67.06 x 52.07Shipping weight (lbs)38.4Shipping weight (kg)17.41Unit Dimensions (in.)19.88 x 23.63 x 17.78Unit weight (lbs)35Unit weight (kg)15.875Unit Dimensions (cm)50.49 x 60.02 x 45.16ColorBlackStyleWall MountedWeight Capacity - Stationary (lbs)200Weight Capacity - Stationary (kg)90.7Cable Access Hole Measurement (inches)9.812 x 2.35 (l x w)SPECIAL FEATURESGrounding lugFront and Back door framesCERTIFICATIONSCertificationsEIA-310-ENOM (Mexico)Tested to NOM (Mexico)ApprovalsRoHSWARRANTYProduct Warranty Period (Worldwide)5-year limited warranty
