| № SAP |
30010252 |
| Партномер |
SRW12U |
Описание
SMARTRACK™ Series
SRW12U

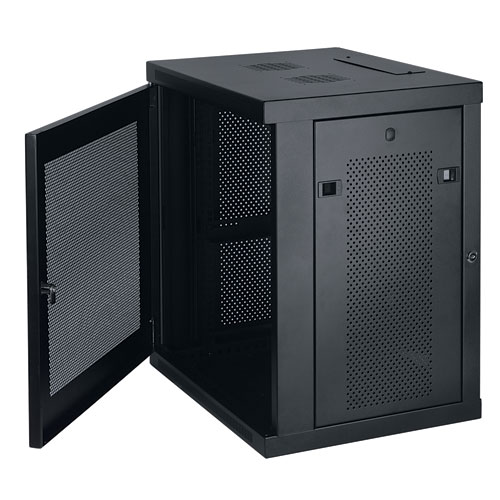

SmartRack 12U Wall-Mount Rack Enclosure Cabinet
Designed for IT and education environments where equipment needs to be secure and out of the way12U with adjustable front vertical rackmount railsLocking, reversible front door and locking, removable side panelsFully assembled for quick installationMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Overview
The SRW12U 12U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall.
Key Features
12U wall-mounted enclosureAdjustable mounting depths up to 17" by 2 front vertical rackmount railsVentilated front door and side panels for increased airflowLocking, reversible front doorLocking, removable side panelsFully assembled for quick installationMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Typical Applications
IT network environments with limited floor space and classrooms where equipment needs to be secure and out of the way of students.
Package Includes
SRW12U Wallmount Rack Enclosure(20) M6 screws(20) M6 cage nuts(20) M6 washers(2) KeysOwner's Manual
Specifications
PHYSICALInstalled whole system maximum rack depth (inches)16.5Installed whole system maximum rack depth (cm)41.9Installed whole system minimum rack depth (inches)3Rack Height12UShipping Dimensions (HWD/in)27.95 x 26.38 x 20.67Shipping Dimensions (HWD/cm)71 x 67 x 52.5Shipping weight (lbs)55.1Shipping weight (kg)25Unit Dimensions (in.)25.08 x 23.63 x 17.69Unit weight (lbs)48.5Unit weight (kg)22Unit Dimensions (cm)63.7 x 60 x 44.93ColorBlackStyleWall MountedWeight Capacity - Stationary (lbs)200Weight Capacity - Stationary (kg)90.7Cable Access Hole Measurement (inches)9.812 x 2.35 (l x w)SPECIAL FEATURESGrounding lugFront and Back door framesCERTIFICATIONSCertificationsEIA-310-ENOM (Mexico)Tested to NOM (Mexico)ApprovalsRoHSWARRANTYProduct Warranty Period (Worldwide)5-year limited warranty
