Tripp Lite SR4POST25 25U, 4-Post Open Frame Rack, Square Holes (black). Adjustable depth from 24 to 36 inches.

SMARTRACK™ Series


SR4POST25

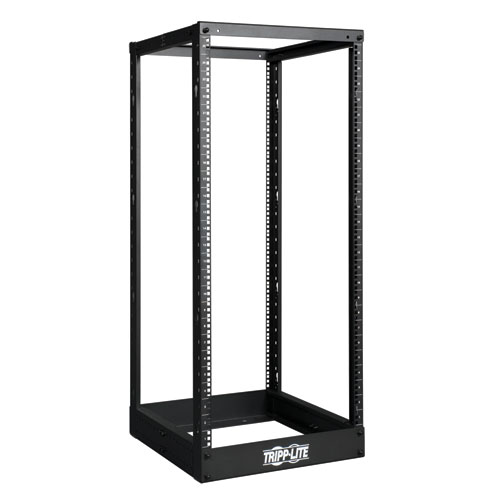

25U 4-Post SmartRack Open Frame Rack - Organize and Secure Network Rack Equipment
25U 4-post open frame rackBlack steel with square, numbered mounting holesToolless button holes to accept PDUs or cable managers

Overview


SmartRack 4-post open frame racks are ideal for cost conscious 19 inch rack mount applications. Multiple units can be bolted together side by side.


Key Features

 Supports 1000lbs of rackmount equipmentAdjustable mounting depth (22 to 39 inches)Textured powder coat finishHeavy-duty cold-rolled steel constructionNumbered mounting positionsBolt down provisionsSelf squaring designBlack finishEasy assembly

Package Includes

 SR4POST25Installation hardware32x pieces of M6 cage nuts, screws, and washers for equipment mountingCable management hooksOwner's manual with warranty information
Specifications
PHYSICALInstalled whole system maximum rack depth (inches)39.3Installed whole system maximum rack depth (cm)99.82Installed whole system minimum rack depth (inches)22Installed whole system minimum rack depth (cm)55.88Rack Height25UShipping Dimensions (HWD/in)4.13 x 5.71 x 56.5Shipping Dimensions (HWD/cm)10.5 x 14.5 x 143.51Shipping weight (lbs)46Shipping weight (kg)20.7Unit Dimensions (HWD/cm)125.2 x 51.3 x 55.9~99.8 (depth adjustable)Unit Dimensions (in.)49.3 x 20.2 x 22~39.3 (depth adjustable)Unit weight (lbs)45Unit weight (kg)20.25Unit Dimensions (cm)125.2 x 51.31 x 55.88~99.1 (depth adjustable)ColorBlackStyle4-PostWeight Capacity - Stationary (lbs)1000Weight Capacity - Stationary (kg)453.6SPECIAL FEATURESGrounding lugIncluded screws, nuts, and washers secure user-supplied grounding wire to Front or Back framesCERTIFICATIONSNOM (Mexico)Tested to NOM (Mexico)ApprovalsEIA-310-D, IEC 60297-3-100, DIN 41494, RoHSWARRANTYProduct Warranty Period (Worldwide)5-year limited warranty
