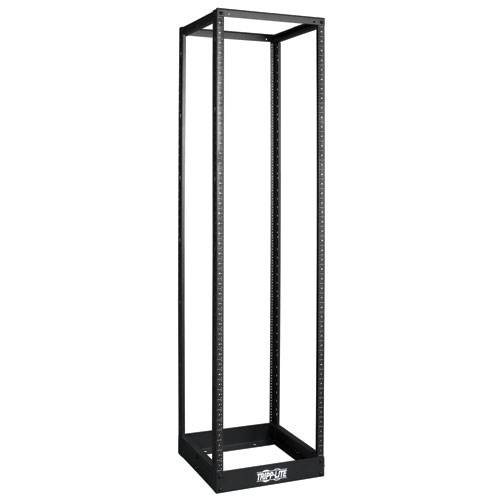

Tripp Lite SR4POST1224 45U, 4-Post Open Frame Rack, Threaded Round Holes (black). Adjustable depth from 22 to 39 inches.

SMARTRACK™ Series

SR4POST1224

45U 4-Post SmartRack Open Frame Rack - Thread (12-24) Mounting Holes
45U 4-post open frame rackBlack steel with threaded (12-24) mounted holesToolless button holes to accept PDUs or cable managers

Overview

SmartRack 4-post open frame racks are ideal for cost conscious 19 inch rack mount applications. Multiple units can be bolted together side by side.

Key Features

 Supports 1000lbs of rackmount equipmentAdjustable mounting depth (22 to 39 inches)Textured powder coat finishHeavy-duty cold-rolled steel constructionNumbered mounting positionsBolt down provisionsThreaded 12-24 holesBlack finishEasy assembly

Package Includes

 SR4POST1224Installation hardware50x pieces of 12-24 screws and washersCable management hooksOwner's Manual with warranty information
Specifications
PHYSICALInstalled whole system maximum rack depth (inches)39Installed whole system maximum rack depth (cm)99.06Installed whole system minimum rack depth (inches)22Installed whole system minimum rack depth (cm)55.88Rack Height45UShipping Dimensions (HWD/in)85 x 6 x 4Shipping Dimensions (HWD/cm)215.9 x 15.24 x 10.16Shipping weight (lbs)70Shipping weight (kg)31.5Unit Dimensions (in.)84.3 x 20.3 x 22-39.4 (depth adjustable)Unit weight (lbs)69Unit weight (kg)31.29Unit Dimensions (cm)214.12 x 51.56 x 55.9~100.1 (depth adjustable)ColorBlackStyle4-PostWeight Capacity - Stationary (lbs)1000Weight Capacity - Stationary (kg)453.6SPECIAL FEATURESGrounding lugIncludes a set of screws, bolts, and washers to secure a user-supplied grounding wire to Front and Back framesCERTIFICATIONSNOM (Mexico)Tested to NOM (Mexico)ApprovalsEIA-310-D, IEC 60297-3-100, DIN 41494, RoHSWARRANTYProduct Warranty Period (Worldwide)5-year limited warranty
