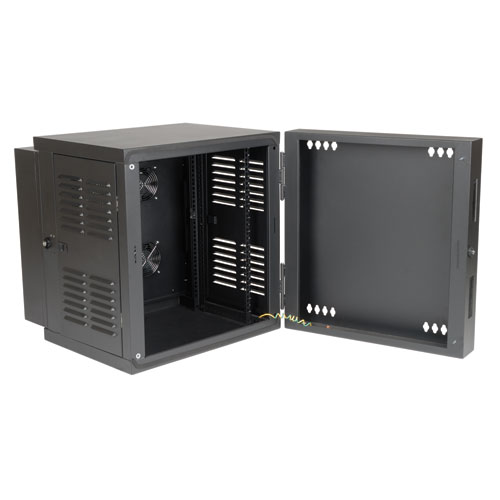

Tripp Lite SRW12USNEMA 12U, NEMA 12-Rated Industrial Wall-Mount Enclosure (black). Hinged wall bracket.

SMARTRACK™ Series


SRW12USNEMA

SmartRack 12U NEMA 12-Rated Industrial Wall-Mount Enclosure (includes doors and side panels)

Do you have equipment that needs to operate in environments where there is high amounts of falling dust, dirt, liquid drips or splashes? The SRW12USNEMA provides protection against such occurrences due to its NEMA 12 rating, which is equivalent to IP54. It is the ideal solution for customers who need to protect valuable equipment in harsh working environments with limited floor space that would otherwise overwhelm a typical rack.12U with adjustable front and rear vertical rackmount railsNEMA 12(IP54) protection ratingHinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)Locking, reversible front door and locking, removable side panels4 high performance intake fans4 cable ports allow cable access while maintaining dust and moisture resistanceMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) complianceFully assembled for quick installation

Overview

The SRW12USNEMA 12U Industrial Wall-Mount Rack Enclosure Cabinet is ideal for customers who need to protect valuable equipment in harsh working environments that would overwhelm a typical rack. It is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. The enclosure has a NEMA 12 protection rating, which is equivalent to IP54. That means it can protect your equipment from falling dirt, dust, drips, splashes and accidental contact with personnel. The front and side panels have ventilating louvers instead of open mesh. They also have a sealing gasket around the door frames. On the front door there is a built-in dust filter. The filter is removable and can be replaced with standard furnace filters - they're simple, inexpensive and effective. To compensate for the added air resistance of the filters, there are 4 large, high performance intake fans in the front door. The fans pull air through the enclosure, from front to side. Since the doors and top are sealed, cable access is provided through 4 cable ports in the rear side. They allow cables to pass through, but they block the area around the cables maintaining the NEMA 12 protection. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling.

Key Features

 12U wall-mounted enclosureNEMA 12(IP54) protection rating allowing protection from falling dirt, dust, drips, splashes and accidental contact with personnel.Adjustable mounting depths from 3" to 20.5" inchesFront door and side panels have ventilating louvers and a sealing gasket around the door frames.Built-in removable dust filter that can be replaced with standard furnace filters.4 large, high-performance fans in front door that pull air through the enclosure, from front to rear.Hinged cabinet swings away from wall bracket for easy equipment and cable access4 cable ports allow cable access while maintaining dust and moisture resistanceLocking, reversible front doorLocking, removable louvered side panelsFully assembled for quick installationMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance 2 year warranty

Typical Applications

Ideal for harsh indoor environments that require protection from falling dirt or liquid, dust, light splashing, oil or coolant seepage, or accidental contact by personnel. It's perfect for locations like factories, power stations, construction areas, shipping facilities, warehouses, processing plants, transport hubs and anywhere you need to protect equipment in a harsh working environments.
Package Includes

 SRW12USNEMA Wallmount rack enclosure(20) M6 cagenuts(20) M6 screws(20) Washers(2) Keys(1) Removable/Replaceable dust filterOwner's Manual
Specifications
PHYSICALInstalled whole system maximum rack depth (inches)20.5Installed whole system maximum rack depth (cm)52.1Installed whole system minimum rack depth (inches)3Rack Height12UShipping Dimensions (HWD/in)28.88 x 29.63 x 27.250Shipping Dimensions (HWD/cm)73.36 x 75.26 x 68.13Shipping weight (lbs)86Shipping weight (kg)38.7Unit Dimensions (in.)EXTERNAL DIMENSIONS: 25 x 23.63 x 21.6 (HWD)Unit weight (lbs)60Unit weight (kg)27.21Unit Dimensions (cm)EXTERNAL DIMENSIONS: 63.5 x 60 x 54.9 (HWD)ColorBlackStyleWall MountedWeight Capacity - Stationary (lbs)200SPECIAL FEATURESGrounding lugFront and Back door framesCERTIFICATIONSNOM (Mexico)Tested to NOM (Mexico)ApprovalsEIA-310-E, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHSWARRANTYProduct Warranty Period (Worldwide)2-year limited warranty
