Tripp Lite SR42UBMDEXP 42U, Mid-Depth SmartRack Expansion Rack (no side panels included)

SMARTRACK™ Series


SR42UBMDEXP

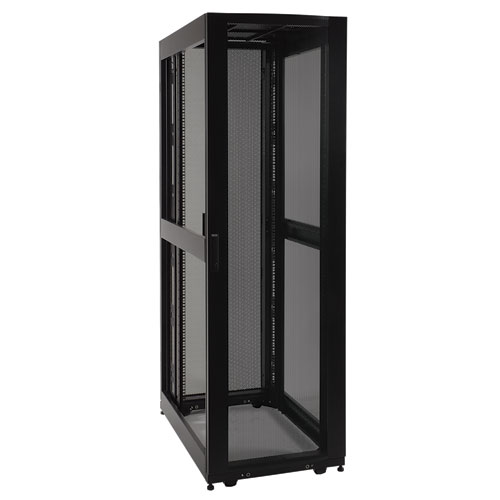

42U Mid-Depth SmartRack Expansion Rack (no side panels included)
42U SmartRack enclosure with doors and NO side panels. 'EXP' version is an expansion model for when several cabinets are bayed together36" (927mm) depth (with mounting depth increments from 4 to 31") and standard 24" (600mm) width 4 interior vertical posts with unthreaded square hole openingsShips fully assembledMassive front to rear ventilation capacity3000 lb stationary / 2250 lb rolling load capacityLocking, removable, reversible front and rear doorsRolls through standard 7 foot doorways

Overview

Part of our new line of mid-depth racks, the SR42UBMDEXP is an expansion model with a depth of 36" (927mm) and width of 24" (600 mm). An expansion cabinet is ideal when several cabinets are bayed together. It has doors and a roof but no side panels. Its integrated baying tabs make it easy to combine multiple enclosures in rows fro data center application. The SR45UBMDEXP is also compatible with hot aisle/cold aisle configurations.

The SR42UBMDEXP houses 3000lbs of standard 19-inch rack equipment in 42U. Offers vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-E compliant 19" equipment. Its front and rear pairs of vertical rails are adjustable in quarter-inch increments from 4 to 31 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of these adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

The top panel of the SR42UBMDEXP is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR42UBMDEXP is open-bottom.

All components of the SR42UBMDEXP are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

To simplify deployment, the SR42UBMDEXP comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

The SR42UBMDEXP comes with a 5-year product warranty. As part of the SmartRack family, the SR42UBMDEXP is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

Key Features

 Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters (casters are removable)Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screwsTextured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements.Maximum usable internal depth of 31 inches/787 mm (front to rear rail).Weight ratings of 3000 lb stationary and 2250 lb rolling.Front door is locking, reversible and removable.Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be placed closer to a wall.Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles.Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable.Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires.Open bottom for cable access.Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first.Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack.Compatibility with airflow optimization accessories as well as cable management accessories.

Package Includes

 SR42UBMDEXP(2) Door keys(50) M6 screws(50) M6 cage nuts(50) M6 washersOwner's Manual

Specifications
PHYSICALInstalled whole system maximum rack depth (inches)31Installed whole system maximum rack depth (cm)78.7Installed whole system minimum rack depth (inches)4Rack Height42UShipping Dimensions (HWD/in)85 x 26 x 37.8Shipping Dimensions (HWD/cm)215.9 x 66.04 x 96Shipping weight (lbs)236Shipping weight (kg)126Unit Dimensions (in.)EXTERNAL DIMENSIONS: 78.5 x 26.63 x 36 (HWD)Unit weight (lbs)186Unit weight (kg)101Unit Dimensions (cm)199.39 x 67.64 x 91.44ColorBlackStyleFloor StandingWeight Capacity - Stationary (lbs)3000Weight Capacity - Rolling (lbs)2250Units per Pallet1Weight Capacity - Stationary (kg)1360.8Weight Capacity - Rolling (kg)1020.6SPECIAL FEATURESGrounding lugFront and Back door framesCERTIFICATIONSCertificationsUL60950; RoHS; CENOM (Mexico)Tested to NOM (Mexico)ApprovalsEIA/ECA-310-EWARRANTYProduct Warranty Period (Worldwide)5-year limited warranty
