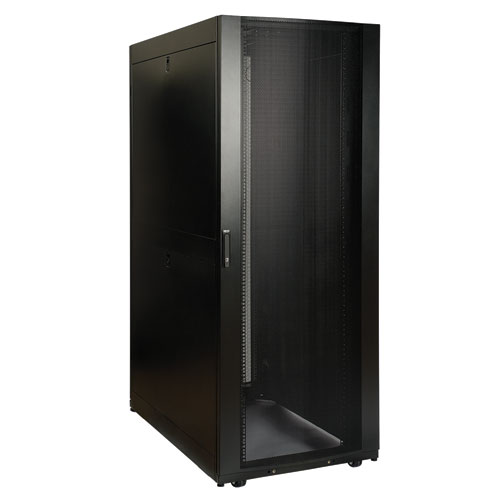

Tripp Lite SR45UBDPWD 45U, SmartRack DEEP and WIDE Premium Enclosure (includes doors and side panels).

SMARTRACK™ Series

SR45UBDPWD

45U SmartRack DEEP and WIDE Premium Enclosure (includes doors and side panels)
48" (1200mm) depth for extra space need for mounting deep equipment30" (750mm) width for optimizing airflow through cabinetShips fully assembled3000 lb stationary / 2250 lb rolling load capacityLocking, removable, reversible front and rear doors; Locking, removable side panels keyed alike with doorsPre-installed casters and leveling feetMeets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Overview

The SR45UBDPWD is a DEEP and WIDE version of our standard 45U SmartRack. This enclosure is 1200mm deep (48") compared to the standard 1050mm deep (42"). This extra depth allows for high density equipment installations. It allows extra space for moving the cable management back as well as providing space for mounted equipment that has hot-swap, removable power supplies out the back of the enclosure. It is also 750mm wide (30") compared to the standard 600mm wide (24"). This extra width allows for high density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling.

The SR45UBDPWD features a massive front-to rear-ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.

With its locking, reversible, removable front and rear doors, and locking, removable side panels, the SR45UBDPWD provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UBDPWD meets all requirements toward PCI DSS compliance.

The top panel of the SR45UBDPWD is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR45UBDPWD is open-bottom.

All components of the SR45UBDPWD are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

It houses 3000 lb of standard 19-inch rack equipment in 45U. To simplify deployment, the SR45UBDPWD comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

The SR45UBDPWD comes with a 5-year product warranty. As part of the SmartRack family, the SR45UBDPWD is compatible with Tripp Lite’s extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

Key Features

 Ships fully assembled for rapid deployment and roll into place on pre-installed casters, allowing the enclosures to be pre-configured and rolled to the final installation location. Casters are removable.Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screwsTextured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements.Maximum usable internal depth of 42 inches (front to rear rail).Weight ratings of 3000 lb stationary and 2250 lb rolling.Front door is locking, reversible and removable.Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be placed closer to a wall.Locking removable side panels are 'half size' to make them smaller and lighter improving ease of installation and servicing. Two side panels per side (4 panels total). Side panels are keyed alike to the front and rear doors.Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 750mm or 30".Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable.Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires.Open bottom for cable access.Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first.Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack.Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) ComplianceCompatibility with airflow optimization accessories as well as cable management accessories.

Package Includes

 SR45UBDPWD Rack Enclosure(4) Side panels(4) Side panel locks(2) Door & side panel keys(50) M6 screws(50) M6 cage nuts(50) M6 washers(1) Allen WrenchOwner's Manual
Specifications
PHYSICALInstalled whole system maximum rack depth (inches)42Installed whole system maximum rack depth (cm)106.7Installed whole system minimum rack depth (inches)4Rack Height45UShipping Dimensions (HWD/in)90.25 x 32 x 52.75Shipping Dimensions (HWD/cm)229.23 x 81.28 x 133.98Shipping weight (lbs)420Shipping weight (kg)191Unit Dimensions (in.)EXTERNAL DIMENSIONS: 83.75 x 29.53 x 47.25 (HWD)Unit weight (lbs)370Unit weight (kg)168Unit Dimensions (cm)212.72 x 75.1 x 120ColorBlackStyleFloor StandingWeight Capacity - Stationary (lbs)3000Weight Capacity - Rolling (lbs)2250Units per Pallet1Weight Capacity - Stationary (kg)1360.8Weight Capacity - Rolling (kg)1020.6SPECIAL FEATURESGrounding lugFront and Back door framesCERTIFICATIONSCertificationsUL60950; RoHS; CENOM (Mexico)Tested to NOM (Mexico)ApprovalsEAI/EAC-310-EWARRANTYProduct Warranty Period (Worldwide)5-year limited warranty
