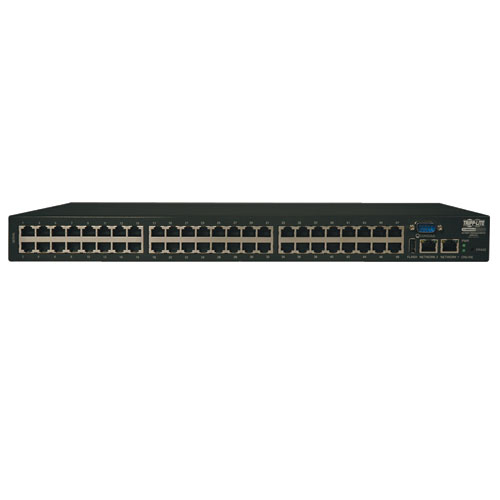

Tripp Lite B096-048 48-Port Serial Console Server Management Switch

B096-048

48-Port Serial Console / Terminal Server Management Switch
Dual Ethernet, Dual Power Supply, and Built-In ModemSecure in-band and out-of-band accessSupports 3G cellular out-of-band accessFeatures 16GB Internal USB FlashConfigured to use standard Cat5e/6 patch cable when connecting to Cisco devicesValidated to meet FIPS 140-2 standardsManage all equipment in the rack: servers, UPS, routers, switches, etcLINUX with source code access allows custom scriptsCompliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchasesMade in the USA
Overview

Tripp Lite’s B096-048 is the most advanced console / terminal server platform available today. In one secure appliance, it offers an in-band and out-of-band management solution for serial console ports, servers, virtual servers, service processors, UPS & PDU's, environmental monitoring and more. This 48 port console server management switch enables system administrators to securely access and control their data centers and networks from anywhere in the world. Supports 3G cellular out-of-band access. The USB port on the console server is compatible with the Pantech ULM290 VZW and the following Sierra Wireless USB modems; Compass 888, USB 598, USB 598U, USB 312U, USB 308, and U313. And this enterprise level unit is equipped with a built in modem, dual Ethernet, dual AC power, 16GB USB flash and runs on Linux for scalability and reduced downtime.

The B096-048 offers advanced software features that surpass the requirements of even the most demanding applications. These features include Network UPS Tools for UPS monitoring, PowerMan for integrated PDU and RPC functions with in session hotkey support, Pattern match alerting, Open access to the Linux shell for scripting, heartbeat monitoring with automatic failover, Cisco pinouts and much more. Available in 16 and 48 port models, the B096 family of Console Servers are the perfect fit for in or out of band access to vital IT assets.

Made in the USA. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Key Features

 Built in modem for out-of-band dial-in accessConfigured to use standard Cat5e/6 patch cable when connecting to Cisco devicesTripp Lite's console servers all use an embedded FIPS 140-2 OpenSSL cryptographic module that has been validated to meet the FIPS 140-2 standards and has received Certificate #1051.When using SSH, HTTPS or SDT Connector to connect to any service on the console server while running in FIPS mode, they will be utilizing the embedded FIPS compliant module. In order to connect using any of the protocols, you must use a cryptographic algorithm that is FIPS approved or it will fail.Supports 3G cellular out-of-band access. The USB port on the console server is compatible with the Pantech ULM290 VZW and the following Sierra Wireless USB modems; Compass 888, USB 598, USB 598U, USB 312U, USB 308, and U313.16GB local FTP/TFTP storage for device configuration filesIPsec VPN supportSecure Shell (SSH V2 and V3)TACACS+ , RADIUS and LDAP authenticationPAP/CHAP authentication (dial up)Local authenticationSystem event syslogSSH port and IP forwarding supportIP packet filteringBreak over SSH supportPort triggers with SMNP and email alertsOffline data logging (Syslog, NFS, CIFS)Online data buffering and loggingMultiple users per port (with port sniffing)Telnet/SSH/Raw TCP connectRFC 2217 - Port RedirectionIntegrated AJAX serial console and system terminal via web interfaceNative IPMI 1.5 and 2.0 (RMCP/RMCP+) support for BMC and service processor access and controlService processor access (IPMI, ILO, LOM and more)Access to KVM built in to service processors (DRAC, RSA)Limit user access by LAN device and SDT service for that devicePort triggers with SMNP and email alerts for all tunnel trafficEach gateway can port forward to an unlimited number of locally networked hosts (computers, routers)Embedded DHCP server for management LAN devicesNetwork UPS Tools for UPS Monitoring and ManagementPowerMan for PDU and RPC ManagementCommand Line interface (Linux Shell)NAGIOS distributed monitoringOut-of-band (dial-up modem access) included - V.92 Serial Data/Fax Embedded Modem 3.3V Model, 14.4K FaxLinux with source code accessConstructed of heavy-duty steel housing

Package Includes

 B096-048, 48-Port IP Console Server Management SwitchRackmount hardware2 x 6-ft, Cat5e Patch cables1 x DB9F - RJ45 Crossover Adapter1 x DB9F - RJ45 Straight-Through Adapter2 x 6-ft, 5-15P to C13 Power cable
Specifications
OVERVIEWIP Remote AccessYES, BUILT ININPUTMaximum Input Amps (A)0.8Input connection type2 x IEC-320-C14, Auto-Switching 100-240VACPHYSICALUnit Dimensions (HWD/in)1.75 x 17.40 x 12.50Unit weight (lbs)8.7ColorBlackENVIRONMENTALStorage Temperature RangeNon operating storage temperature: -30C to +60C (-20F to +140F)Relative HumidityHumidity: 5% to 90%Operating TemperatureAmbient operating temperature: 5C to 50C (41F to 122F)BTUs120V: 68 BTU per hourPower Consumption (Watts)120V: 20 WattsCONNECTIONSPorts48Other Ports - Port 11 x DB-9 RS-232 local console and modem serial port (2400 to 115,200 bps)Other Ports - Port 21 RJ-11 modem portOther Ports - Port 32 x RJ-45 10/100Base-T Ethernet portOther Ports - Port 41 USB portOther Ports - Port 52 x C14 Power Ports, 100-240V ACCERTIFICATIONSApprovalsFCC Part 15 A, UL 1950, CE (EN55022 A, EN55024, EN60950), TUV, C-TickWARRANTYProduct Warranty Period (Worldwide)2-year limited warranty
