Tripp Lite B020-U08-19-K 8-Port NetDirector 1U Rackmount Console KVM Switch w/19" LCD + 8 PS2/USB Combo Cables

NETDIRECTOR™ Series


B020-U08-19-K

Console KVM Switch - 8-Port NetDirector 1U Rackmount Console KVM Switch w/19" LCD + 8 PS2/USB Combo Cables

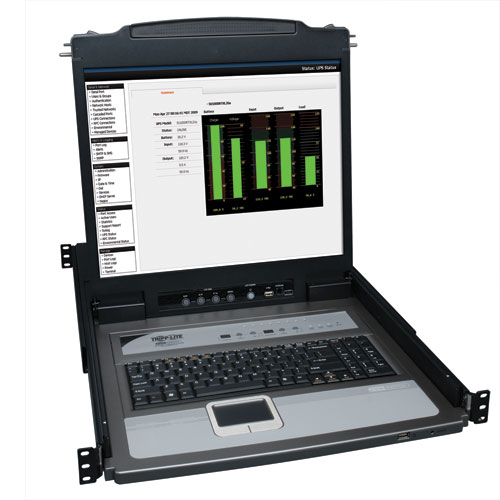

1U Rackmount console with built-in 8-Port KVM switch, 19" LCD screen, keyboard, and touchpadComes with (x8) 6 ft. USB/PS2 combo KVM cable kitsSupports video resolutions up to 1280 x 1024Features an additional USB 1.1 port for sharing peripherals amongst connected computersOSD available in English, Spanish, French, German, and JapaneseCompatible with all major operating systems

Overview

Tripp Lite's 8-port Console KVM Switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines an 8 port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 504 computers from this single console by daisy-chaining additional 16 port KVM switches (model B022-U16). Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB servers...no adapters needed. Includes a console cable kit that plugs into the port on the back of the unit, providing an extra HD15, (2) USB and (2) PS/2 ports that can be used to connect a Tripp Lite B051-000 IP Remote Access Unit or an external console. Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and the other for attachment of USB peripherals, such as a flash drive, external hard drive, etc. to be shared between connected servers. Compatible with all major operating systems. Constructed of heavy-duty steel housing.

Key Features

 1U rackmount console with built-in 8-Port KVM switch, 19" LCD screen, keyboard, and touchpadIncludes (x8) P778-Series USB/PS2 Combo KVM Cable KitsAdditional ports are provided for the connection of an external console (PS/2 or USB) or IP remote access unit (model B051-000)Features a USB 1.1 port on the LCD panel for the sharing of USB peripherals such as Flash Drives and Card Readers amongst the connected computersFeatures a USB 1.1 port on the keyboard panel for the convenient connection of an external mouseUSB/PS2 combo KVM cable kits allow you to connect to a USB or PS/2 computer without having to purchase separate cables or adaptersControl up to 504 computers by daisychaining up to 31 additional B022-U16 KVM switchesDaisychain station position is automatically sensed; no need for manual DIP switch settingsOSD available in English, Spanish, French, German, and JapaneseSwitch ports via on-console pushbuttons, hotkey keyboard commands, or the OSDAuto scan feature allows for continuous scanning of connected computersTwo level password security (up to four Users and one Administrator)Supports video resolutions up to 1280 x 1024Firmware upgradeableInput Power: 100-240VAC, 50/60Hz, 1APower Consumption: 120V, 28.5W / 230V, 29.1W\Compatible with all major operating systemsConstructed of heavy-duty steel housing

System Requirements

 Computer with a HD15 port, and a USB port or PS/2 keyboard/mouse portsP778-006 USB/PS2 combo KVM cable kit is required for each connected computer/serverCompatible with all major operating systems

Package Includes

 B020-U08-19-K 1U rackmount console with built-in 8-Port KVM switch, 19" LCD, keyboard, and touchpad(x8) P778-006 6 ft. USB/PS2 combo KVM cable kitsUSB/PS2 combo console cable kitRJ11 to DB9 firmware upgrade cableC13 to 5-15P power cordCD with owner's manualQuick start guideGrounding wireRackmount hardware
Specifications
OVERVIEW# Of Users1ConsoleYesPort ControlPush Buttons, Hotkeys, OSDMax CPU504PC/ServerPS/2Unit Dimensions (HWD/in.)1.75 x 17 x 27IP Remote AccessNoPHYSICALUnit Dimensions (HWD/cm)4.45 x 43.18 x 68.58Unit weight (lbs)30.6Unit weight (kg)13.88Mounting accessories includedYesColorBlackStyle1U Rackmount ConsoleLCD Monitor (in.)19LCD Monitor (cm)48.26ENVIRONMENTALStorage Temperature Range-4 Degrees F to 140 degrees F (-20 to +60 C)Relative Humidity0 to 80% RH, Non-condensingOperating Temperature32 Degrees F to 120 Degrees F (0 to 50 C)CONNECTIONSPorts8Computer/Server Ports(x8) HD18 (Female)Daisy-Chain PortDB25 MaleFirmware Upgrade PortRJ45Included Cable (Side A) - Connector 1HD18 MaleIncluded Cable (Side B) - Connector 1HD15 MaleIncluded Cable (Side B) - Connector 2PS/2 maleIncluded Cable (Side B) - Connector 3PS/2 MaleIncluded Cable (Side B) - Connector 4USB A MaleOther Ports - Port 1USB A for Optional USB Mouse connectionOther Ports - Port 2USB A for Optional Flash Drive connectionRemote Console PortHD18 Female + Dongle Cable Kit w/VGA, PS2, & USB FemalesFEATURES/SPECIFICATIONSAutoscan (Y,N)YCERTIFICATIONSApprovalsUL, cUL, CE, FCC, RoHSWARRANTYProduct Warranty Period (Worldwide)1-year limited warranty
