Tripp Lite B013-330 Cat5 Console (PS/2 or USB) Extender - 330ft Range

B013-330

KVM Switch Accessories- Cat5e KVM Console Extender Kit
Manage a PS/2 or USB computer/KVM switch from a remote location up to 330ft (100m) awayUse readily available Cat5e cable for interconnection

Overview

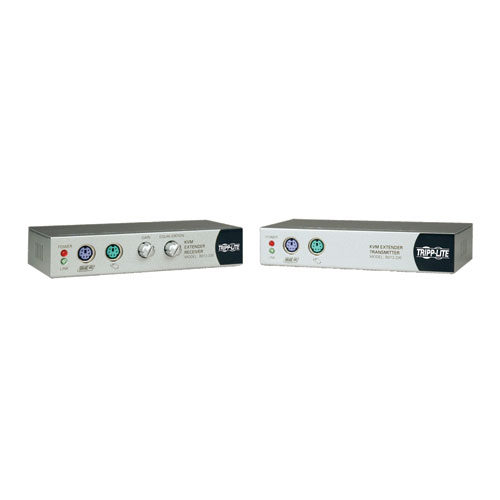

Tripp Lite's B013-330 Cat5e KVM Extender Kit utilizes Cat5 cabling to extend your computer's Keyboard, Monitor, and Mouse control up to 100 meters (330 ft.) away. The Cat5 KVM Extender Set comprises two units - the Transmitter (Local Unit) and the Receiver (Remote Unit). The Transmitter Unit contains local console ports, allowing the user to have both a local and remote console. The Receiver Unit contains Gain and Equalization knobs that allow the user to manually adjust the video parameters of the remote console. Users can easily optimize the video screen output via these mechanical knobs.

Key Features

 Enables you to control a PS/2 or USB computer/KVM switch from a distance of up to 330ft (100m) away.Can control the computer or KVM switch via both Local and Remote Consoles.The remote connection is made using standard Cat5e cableDisplay mode of 1600 x 1200 @ 60HzShielded Cat5e cables provide better transmission integrity

Package Includes

 Transmitter and Receiver Unit (1 each)3-ft. PC/KVM Cable Kit (1)Power Adapter (DC9V, 1A) for Receiver Unit (1)4-ft. USB A-B Cable (1)Quick Start Guide
Specifications
OVERVIEWModel TypeConsole Extender KitsPRODUCT OVERVIEWProduct OverviewCat5e KVM Console Extender KitPHYSICALShipping Dimensions (HWD/in)6.9 x 8 x 5.5Shipping Dimensions (HWD/cm)17.526 x 20.32 x 13.97Shipping weight (lbs)2.04Shipping weight (kg)0.93ColorSilverTransmitter Unit Height Inches1Transmitter Unit Width Inches5.2Transmitter Unit Depth Inches2.6Receiver Unit Height Inches1Receiver Unit Width Inches5.2Receiver Unit Depth Inches2.6CONNECTIONSOther Ports
(x2) RJ45 (Female)Included KVM Cable (Equipment Side) - Connector 1

HD15 (Male)Included KVM Cable (Equipment Side) - Connector 2(x2) MiniDIN6 (Male)Included KVM Cable (Equipment Side) - Connector 3

USB A (Male)Local Console Ports - Port 1

HD15 (Female)Local Console Ports - Port 2(x2) MiniDIN6 (Female)Remote Console Ports - Port 1

HD15 (Female)Remote Console Ports - Port 2(x2) MiniDIN6 (Female)WARRANTYProduct Warranty Period (Worldwide)1-year limited warranty
