Tripp Lite PDU3XMV6L2220 3-Phase Metered PDU, 11.5 kW, 45 240/230/220V outlets (36 C13, 9 C19), NEMA L22-20P 415/400/380V input, 0U vertical mount

PDU3XMV6L2220

3-Phase Metered PDU, 11.5 kW, 45 240/230/220V outlets (36 C13, 9 C19), NEMA L22-20P 415/400/380V input, 0U vertical mount
Metered 11.5kW 3-Phase 415/400/380V input 240/230/220V output PDUSet of 3 digital meters report output load level per phase in amps70in / 1778mm 0U vertical format, toolless button-mount installation NEMA L22-20P 3 phase input; 6ft 1.8m line cord36 C13 & 9 C19 single phase outlets; Included cord retention brackets

Overview

Tripp Lite 3-phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.


Key Features

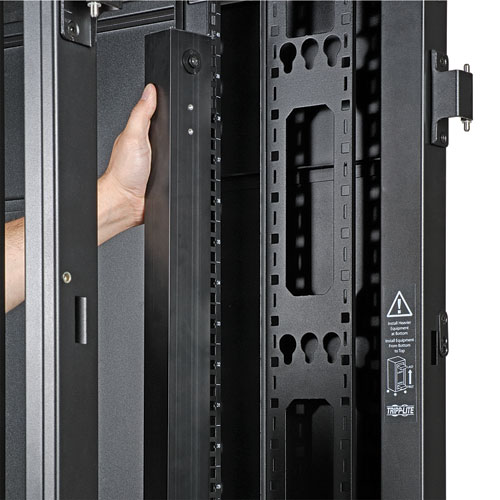

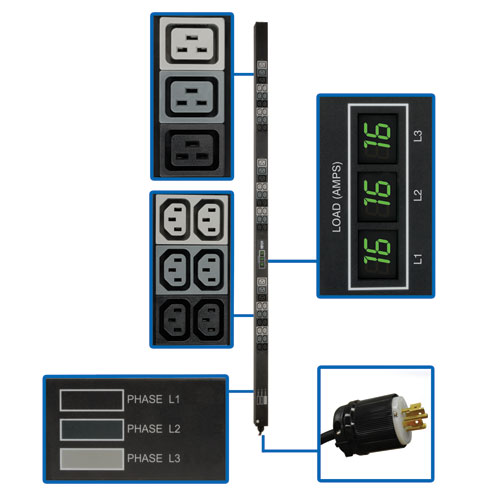

 11.5 kW Metered Power Distribution Unit (PDU)415/400/380V input with NEMA L22-20P 3-phase input connection240/230/220V output with 36 C13 & 9 C19 single phase output receptacles0U / 1778mm vertical rackmount installation supportedOutlets are arranged in 3 metered 15 outlet load banksIncluded cord retention brackets keep vital network equipment plugged in and continuously poweredToolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)

Typical Applications

Ideal for 3-phase network configurations in datacenters and heavily configured equipment racks.
Package Includes

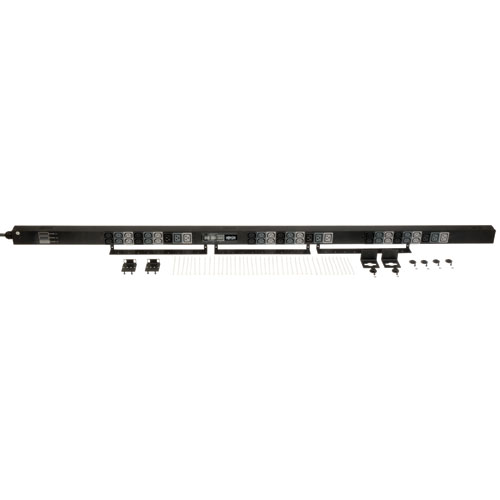

 Metered rackmount PDU with pre-installed mounting buttonsCord retention bracketsSpare installation buttons (2 9mm / 4 6mm) Rack mounting bracketsOwner's manual
Specifications
OVERVIEWPDU TypeMeteredOUTPUTOutput Capacity Details11.5kVA total; 16A per bank (balanced)Frequency compatibility50 / 60 HzOutput nominal voltageSingle phase 240/230/220VOutlet quantity / type45 total - 36 C13 (12 per phase), 9 C19 (3 per phase)Outlet TypeIEC-C13, IEC-C19INPUTNominal Input Voltage(s) Supported380V AC; 400V AC; 415V ACPDU Input Voltage400; 380; 415Maximum Input Amps (A)16PDU Plug TypeNEMA L22-20PInput cord length (ft.)6Input cord length (m)1.8Phase3-PhasePHYSICALShipping Dimensions (HWD/in)5.6 x 6.8 x 76.8Shipping Dimensions (HWD/cm)14.2 x 17.3 x 195.1Shipping weight (lbs)13.8Shipping weight (kg)6.3Unit Dimensions (HWD/in)70 x 2.2 x 1.93Unit Dimensions (HWD/cm)177.8 x 5.6 x 4.9Unit weight (lbs)8Unit weight (kg)3.6Material of constructionSteelStyleVertical rackmountForm factors supportedVertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racksPDU Form FactorVertical (0U)ENVIRONMENTALRelative Humidity0-95% non-condensingCERTIFICATIONSCertificationsTested to UL (USA), CSA (Canada), NOM (Mexico), CE (EU), Class A (Emissions), RoHS (Hazardous Substances)WARRANTYProduct Warranty Period (Worldwide)2-year limited warranty
