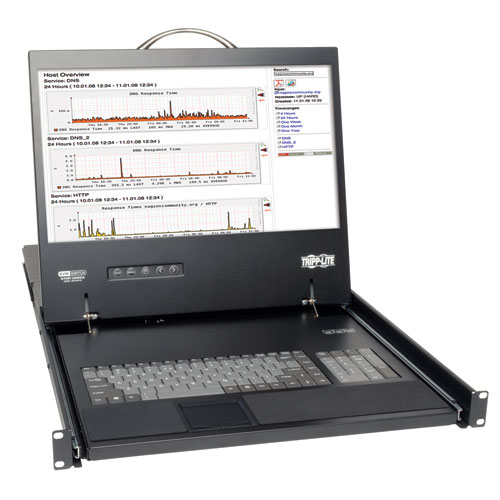

Tripp Lite B070-016-19-IP 16-Port NetCommander™ Rack Console IP Cat5 KVM with 19 in. LCD - Requires B078-101-Series Interface Modules

NETCOMMANDER™ Series


B070-016-19-IP

NetCommander 19" Console w/ 16-Port Cat5 IP KVM Switch
16-port Cat5 IP KVM Switch with built-in 19" LCD Monitor, Keyboard, and MouseExpandable: Connect and control up to 256 computersCompatible with all major operating systems (Mac not compatible over IP)

Overview

Tripp Lite's B070-016-19-IP, NetCommander Rackmount Console IP KVM switch, is a cost effective and highly flexible system for controlling up to 256 computers from either a single 19" LCD display console, or, from a remote location. The number of connected computers can be increased by cascading additional Tripp Lite B072-008-1 or B072-016-1 KVM switches. Switching between attached servers can be accomplished via the On Screen Display (OSD) or Hotkey commands.
Utilizing Tripp Lite B078-101-Series server interface units, KVM cabling is kept to a minimum via Cat5e/6 patch cables. Servers can be located up to 100 ft. from the switch.
Password feature provides additional security to prevent unauthorized access to attached computers. All rackmount hardware is included, and is designed for easy, one person installation. Fits into any rack from 27" to 42" deep. 2-post rackmounting available using Tripp Lite's B019-000. Compatible with all major operating systems. (Mac not compatible over IP) Constructed of heavy-duty steel housing.

Key Features

 16-port Cat5 IP KVM Switch with built-in 19" LCD Monitor, Keyboard, and MouseSupports resolutions up to 1366 X 768Connect and control up to 256 computersSupports the highest security standards for encryption ( 128-bit SSL and HTTPS )Advanced OSD Management with multi-layer security for local usersStandard EIA 19" rackmountingUse in racks from 27" to 42" deepOSD menu for intuitive operation and easy controlUSB and PS/2 mouse/keyboard supportPassword protection and auto-logout featuresFirmware upgradeableHot-swappable: disconnect and reconnect USB computers w/o rebootEasy port selection via On Screen Display (OSD) or Hotkey commandsRugged ball bearing slides offer long life usageUses readily availabe Cat5/5e/6 patch cables to locate computers up to 100 ft. from the KVMCompatible with all major operating systems (Mac not compatible over IP)Compatible with Internet Explorer 6 and later, and Firefox 3.xConstructed of heavy-duty steel housing

System Requirements

 PS/2 or USB computer / server(1) B078-101-PS2 (PS/2) or B078-101-USB (USB) Server Interface Unit is required for each connected computer/serverCompatible with all major operating systems. (Mac not compatible over IP)Compatible with Internet Explorer 6 and later, and Firefox 3.x

Package Includes

 B070-016-19-IP 16-port KVM 19" LCD ConsolePower CordSerial Firmware Upgrade CableKVM/Console Jumper cableOwners manual CD
Specifications
OVERVIEW# Of Users1ConsoleYesPort ControlHotkeys, OSDMax CPU256PC/ServerVGA; USB; PS/2Cat5 KVM SwitchYesIP Remote AccessYES, BUILT ININPUTElectrical Consumption(Line Mode) 30W / (Standby Mode) 5WNominal input voltage descriptionInternal Switching 100-240 VAC 50/60HzPHYSICALUnit Dimensions (HWD/in)1.7" x 19" x 26.8"Unit Dimensions (HWD/cm)4.32 x 48.26 x 68.07Unit weight (lbs)37.5Unit weight (kg)17.01ColorBlackStyle1U Rackmount ConsoleLCD Monitor (in.)19LCD Monitor (cm)48.26ENVIRONMENTALStorage Temperature Range-40F to 158FRelative Humidity80% Non-condensing Relative HumidityOperating Temperature32F to 104FBTUs(Line Mode) 102 BTU/Hr / (Standby Mode) 17.06 BTU/HrCONNECTIONSPorts16FEATURES/SPECIFICATIONSAutoscan (Y,N)YAutoscan DurationVariableWARRANTYProduct Warranty Period (Worldwide)1-year limited warranty
