Tripp Lite B072-016-1 NetCommander Cat5 KVM - 16 Port

NETCOMMANDER™ Series


B072-016-1

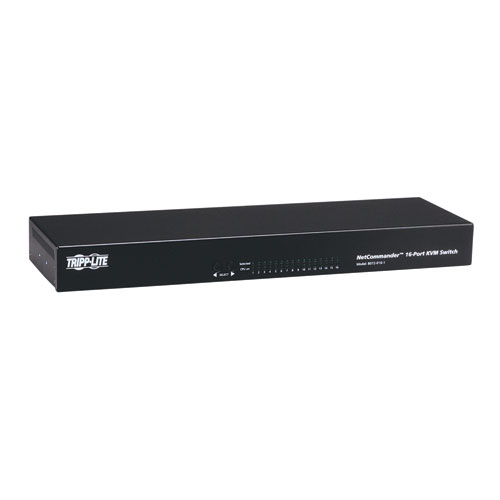

KVM Switch - 16-Port NetCommander 1U Rackmount Cat5 KVM Switch
16 RJ45 Ports utilize inexpensive Cat5 patch cablesExpandable - control up to 256 servers from a single station3 ways to switch between servers - Push buttons, Hot-Keys, On Screen Display menuSupports PS2 and USB CPUs1U Rackmountable - includes mounting hardwareCompliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchasesCompatible with all major operating systems

Overview

Tripp Lite's 16-Port NetCommander 1U Rackmount Cat5 KVM Switch, is the next generation of our cost-effective, feature rich, KVM switches. It's sleek, 1U design and compact size, features RJ45 connection ports that utilize inexpensive Cat5 patch cables, reducing the amount of cable clutter normally found with traditional KVM cabling. Easily switch between CPU's with Push Buttons, Hot-Key commands, or built-in On Screen Display (OSD) menu function. Cascadability allows connection to up to 256 computers. Compatible with PS/2 and USB computers, VGA, SVGA, or XGA monitors, as well as all major operating systems.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Constructed of heavy-duty steel housing.

Key Features

 Powerful control 1-256 computers from one KVM consoleExtend distance between computer and switch up to 30 meters/100ftRack mountable sleek, 1U space saving KVM switchesInnovative CAT5 technology eliminate cable clutter at the rackMulti-layer security protects your corporate dataEasy server management choice of On Screen Display, Hot-key,or push button controlMulti-platform - PS/2, SUN, and USB supportEasily add IP functionality with Tripp Lite Model B051-000Add Tripp Lite Model B021-000-17 for space saving, in-the-rack, LCD, Keyboard and Mouse.Compact Size: 17"W x 5"D x 1.75"HVideo Resolution: 1600x1200@75HzInternal Power SupplyCompliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchasesCompatible with all major operating systemsConstructed of heavy-duty steel housing

System Requirements

 Computers: The Tripp Lite B078-101-PS2, or B078-101-USB Server Interface Module must be used to connect a computer/serverCompatible with all major operating systems

Package Includes

 16-Port NetCommander 1U Rackmount Cat5 KVM Switch6-ft Power Cord6-ft Serial CableRackmount Bracket kit
Specifications
OVERVIEW# Of Users1ConsoleNoPort ControlPush Buttons, Hotkeys, OSDMax CPU256PC/ServerVGA; USB; PS/2Cat5 KVM SwitchYesIP Remote AccessYES WITH B051-000PHYSICALColorBlackStyle1U RackmountLCD Monitor (in.)Not ApplicableLCD Monitor (cm)Not ApplicableENVIRONMENTALBTUs27.296CONNECTIONSConnector A
HD15 (FEMALE)Connector B

(X2) MINI DIN-6 (FEMALE)Ports16WARRANTYProduct Warranty Period (Worldwide)1-year limited warranty
